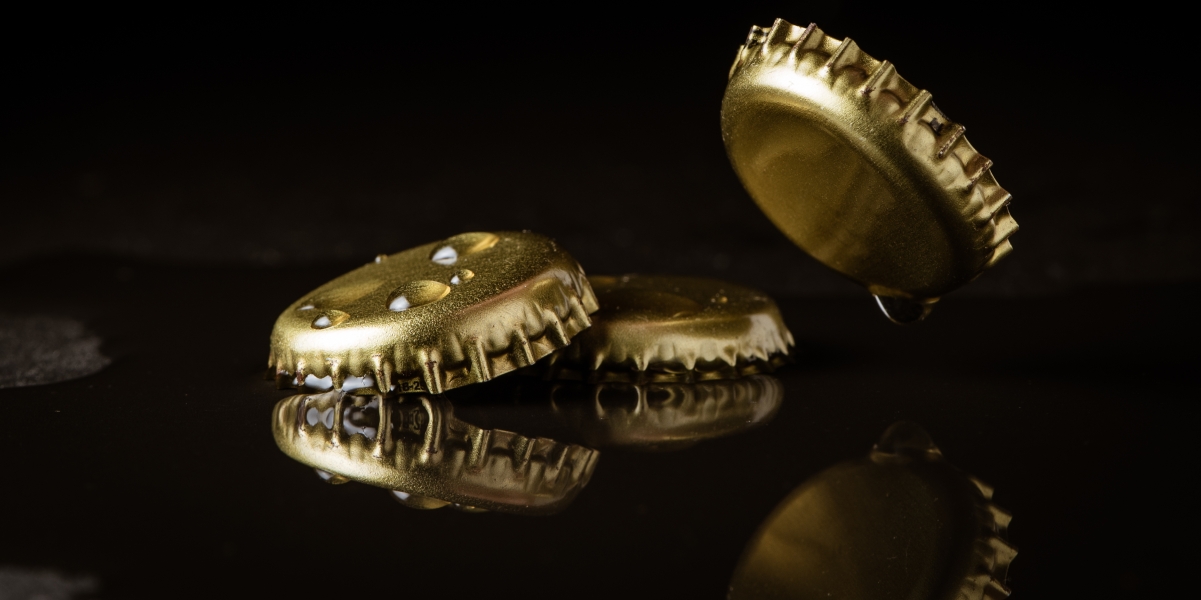

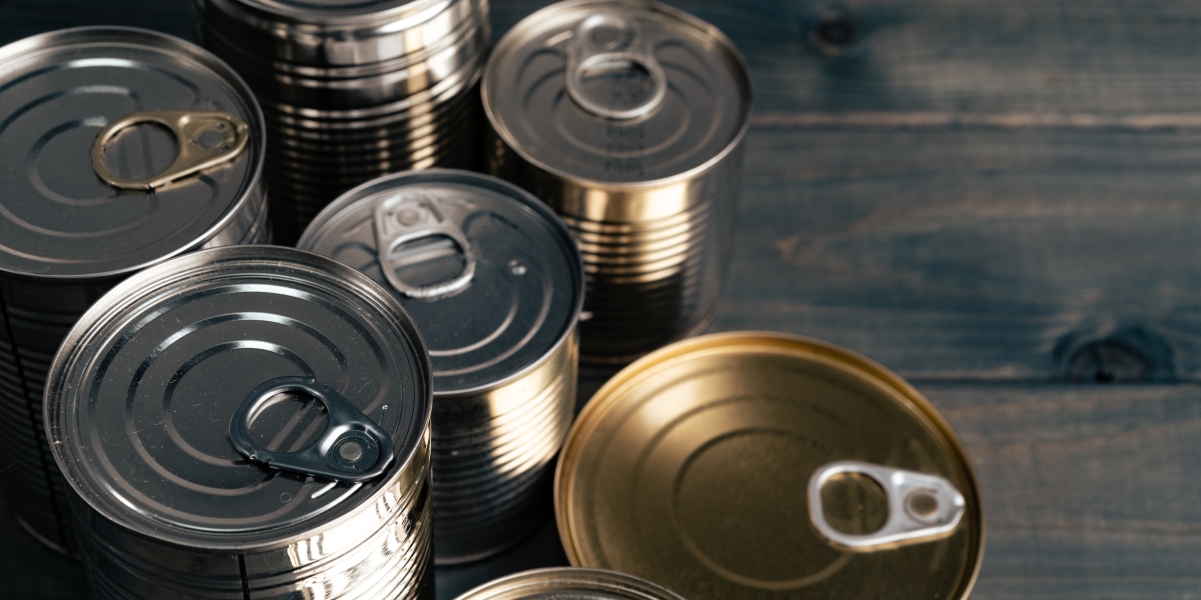

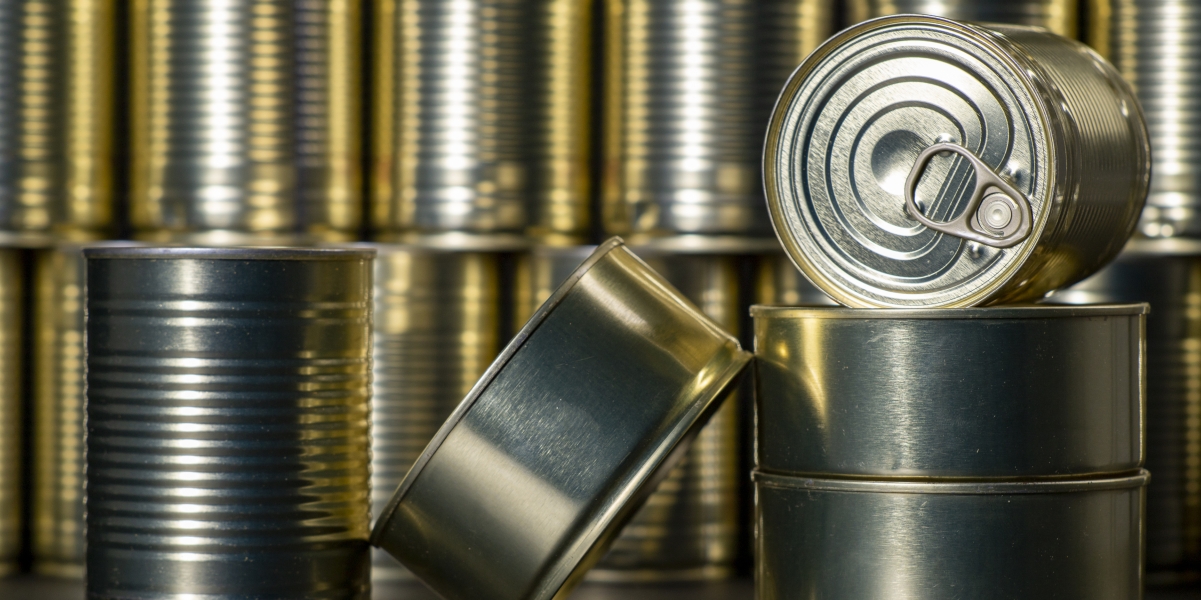

Tinplate has long been used throughout the world in food cans, beer cans, beverage cans, oil cans, pails, decorative cans, screw caps, crown caps and many other products.

SG Tinplate is not only a professional steel supplier, but also your trustworthy partner in Tinplate. With the support of the most professionaltinplate manufacturers and a large number of customers, we can not only provide you with ordinary tinplate but also help you find very personalized tinplate, such as special tinplate grades, Special sizes, special craft shapes, etc.

Specs

Product Parameters
Product Name	Single Reduced Cold Rolled Tinplate
Thickness	0.12 - 0.60 mm or customer required
Width	508 mm-1080 mm,according to customer’s required
Length	Support customization
Tin Coating General	2.8g , 5.6g, 11.2 g can be produced according to customer
Substrate Type	MR / SPCC / L / D
Reference Standard	JIS G3303, JIS G3315, DIN EN 10202, DIN EN 10203

Product Parameters

Product Name

Single Reduced Cold Rolled Tinplate

Thickness

0.12 - 0.60 mm or customer required

Width

508 mm-1080 mm,according to customer’s required

Length

Support customization

Tin Coating General

2.8g , 5.6g, 11.2 g can be produced according to customer

Substrate Type

MR / SPCC / L / D

Reference Standard

JIS G3303, JIS G3315, DIN EN 10202, DIN EN 10203

Steel Grades Substrate
MR	Base stee, low in residual elements, that has high corrosion resistance and is widely used in general applications as containers.
L	Base steel, extremely low in residual elements such as Cu, Ni, Cr and Mo. Used for the production of acidic contents (oranges, yellow peaches, pineapples, etc.) high corrosion resistance tinplate substrate steel, such tinplate is often called KPlate
D	Used to produce two pieces of high-processing tin plate substrate steel, such tin plate is often called.DIMaterial

Steel Grades Substrate

Base stee, low in residual elements, that has high corrosion resistance and is widely used in general applications as containers.

Base steel, extremely low in residual elements such as Cu, Ni, Cr and Mo. Used for the production of acidic contents (oranges, yellow peaches, pineapples, etc.) high corrosion resistance tinplate substrate steel, such tinplate is often called KPlate

Used to produce two pieces of high-processing tin plate substrate steel, such tin plate is often called.DIMaterial

Coating Weight
Classification	Representation of Tin Coating Weight	Tin Coating Nominal Weight (g/m2)	Minimum Average Tin Coating Weight (g/m2)
Equal Tin Coating	1.1/1.1	1.1/1.1	1.8
2.2/2.2	2.2/2.2	4
2.8/2.8	2.8/2.8	5
5.6/5.6	5.6/5.6	10.5
Differentiated Tin Coating	2.2/1.1	2.2/1.1	2.0/0.9
2.8/1.1	2.8/1.1	2.25/0.9
5.6/1.1	5.6/1.1	5.05/0.9
2.8/2.2	2.8/2.2	2.25/2.0
5.6/2.2	5.6/2.2	5.05/2.0
5.6/2.8	5.6/2.8	5.05/2.25

Coating Weight

Classification

Representation of Tin Coating Weight

Tin Coating Nominal Weight (g/m2)

Minimum Average Tin Coating Weight (g/m2)

Equal Tin Coating

1.1/1.1

1.8

2.2/2.2

2.8/2.8

5.6/5.6

10.5

Differentiated Tin Coating

2.2/1.1

2.0/0.9

2.8/1.1

2.25/0.9

5.6/1.1

5.05/0.9

2.8/2.2

2.25/2.0

5.6/2.2

5.05/2.0

5.6/2.8

5.05/2.25

Mechanical Properties & Applications
Standard Name	Nominal Hardness HR30TS	Strong Yield MPA	Scope of Application
T-1	49 +/- 4	230 /-50	Drawing requirements, drawn ironing cans, nozzles, nozzles, closures
T-2	53 +/- 4	245 /-50	Ring and plug, dome, closure, shallow pull and special tank parts
T-2.5	55 +/- 4	260 /-50	Battery cell, small can cover and body
T-3	57 +/- 4	275 /-50	Cans and cans, large diameter caps, crown caps
T-3.5	59 +/- 4	290 /-50	Can body, closure and crown lid
T-4	61 +/- 4	340 /-50	Can body, closure and crown lid
T-5	65 +/- 4	480 /-50	Cans and cans

Mechanical Properties & Applications

Standard Name

Nominal Hardness HR30TS

Strong Yield MPA

Scope of Application

T-1

49 +/- 4

230 /-50

Drawing requirements, drawn ironing cans, nozzles, nozzles, closures

T-2

53 +/- 4

245 /-50

Ring and plug, dome, closure, shallow pull and special tank parts

T-2.5

55 +/- 4

260 /-50

Battery cell, small can cover and body

T-3

57 +/- 4

275 /-50

Cans and cans, large diameter caps, crown caps

T-3.5

59 +/- 4

290 /-50

Can body, closure and crown lid

T-4

61 +/- 4

340 /-50

Can body, closure and crown lid

T-5

65 +/- 4

480 /-50

Cans and cans

Final Products

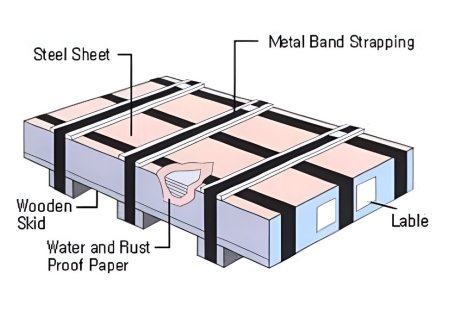

Steel Sheets
We supply standard packaging for electrolytic tin plate, including transverse or longitudinal strips, corner protectors, wooden bracket, pallets, polyethylene raffia and metal boxes

Steel Sheets

We supply standard packaging for electrolytic tin plate, including transverse or longitudinal strips, corner protectors, wooden bracket, pallets, polyethylene raffia and metal boxes

Steel Coils
Steel coils with a weight of 6 -10 MT can be supplied with a ID of 480 mm or 520 mm

Steel Coils

Steel coils with a weight of 6 -10 MT can be supplied with a ID of 480 mm or 520 mm

Specs

Product Parameters
Product Name	Double Reduced Cold-Rolled Tinplate Coil
Thickness	0.10 - 0.49 mm or customer required
Width	508-1063 mm,according to customer’s required
Length	Support customization
Tin Coating General	General: 2.8g , 5.6g, 11.2 g can be produced according to customer
Substrate Type	MR / SPCC / L / D
Reference Standard	JIS G3303, JIS G3315, DIN EN 10202, DIN EN 10203

Product Parameters

Product Name

Double Reduced Cold-Rolled Tinplate Coil

Thickness

0.10 - 0.49 mm or customer required

Width

508-1063 mm,according to customer’s required

Length

Support customization

Tin Coating General

General: 2.8g , 5.6g, 11.2 g can be produced according to customer

Substrate Type

MR / SPCC / L / D

Reference Standard

JIS G3303, JIS G3315, DIN EN 10202, DIN EN 10203

Steel Grades Substrate
MR	Base stee, low in residual elements, that has high corrosion resistance and is widely used in general applications as containers.
L	Base steel, extremely low in residual elements such as Cu, Ni, Cr and Mo. Used for the production of acidic contents (oranges, yellow peaches, pineapples, etc.) high corrosion resistance tinplate substrate steel, such tinplate is often called KPlate
D	Used to produce two pieces of high-processing tin plate substrate steel, such tin plate is often called.DIMaterial

Steel Grades Substrate

Base stee, low in residual elements, that has high corrosion resistance and is widely used in general applications as containers.

Used to produce two pieces of high-processing tin plate substrate steel, such tin plate is often called.DIMaterial

Coating Weight
Classification	Representation of Tin Coating Weight	Tin Coating Nominal Weight (g/m2)	Minimum Average Tin Coating Weight (g/m2)
Equal Tin Coating	1.1/1.1	1.1/1.1	1.8
2.2/2.2	2.2/2.2	4
2.8/2.8	2.8/2.8	5
5.6/5.6	5.6/5.6	10.5
Differentiated Tin Coating	2.2/1.1	2.2/1.1	2.0/0.9
2.8/1.1	2.8/1.1	2.25/0.9
5.6/1.1	5.6/1.1	5.05/0.9
2.8/2.2	2.8/2.2	2.25/2.0
5.6/2.2	5.6/2.2	5.05/2.0
5.6/2.8	5.6/2.8	5.05/2.25

Coating Weight

Classification

Representation of Tin Coating Weight

Tin Coating Nominal Weight (g/m2)

Minimum Average Tin Coating Weight (g/m2)

Equal Tin Coating

1.1/1.1

1.8

2.2/2.2

2.8/2.8

5.6/5.6

10.5

Differentiated Tin Coating

2.2/1.1

2.0/0.9

2.8/1.1

2.25/0.9

5.6/1.1

5.05/0.9

2.8/2.2

2.25/2.0

5.6/2.2

5.05/2.0

5.6/2.8

5.05/2.25

Mechanical Properties & Applications
Standard Name	Nominal Hardness HR30TS	Scope of Application
DR 7.5	71 +/- 4	Can ends and bodies, drawn and redrawn cans (DRD), soft drink cans. Necked-in cans, expanded cans, food cans, screw caps.
DR 8	72 +/- 4
DR 8.5	73 +/- 4
DR 9	75 +/- 4
DR 9.5	76 +/- 4
DR 10	79 +/- 4

Mechanical Properties & Applications

Standard Name

Nominal Hardness HR30TS

Scope of Application

DR 7.5

71 +/- 4

Can ends and bodies, drawn and redrawn cans (DRD), soft drink cans. Necked-in cans, expanded cans, food cans, screw caps.

DR 8

72 +/- 4

DR 8.5

73 +/- 4

DR 9

75 +/- 4

DR 9.5

76 +/- 4

DR 10

79 +/- 4

Final Products

Steel Sheets
We supply standard packaging for electrolytic tin plate, including transverse or longitudinal strips, corner protectors, wooden bracket, pallets, polyethylene raffia and metal boxes

Steel Sheets

We supply standard packaging for electrolytic tin plate, including transverse or longitudinal strips, corner protectors, wooden bracket, pallets, polyethylene raffia and metal boxes

Steel Coils
Steel coils with a weight of 6 -10 MT can be supplied with a ID of 480 mm or 520 mm

Steel Coils

Steel coils with a weight of 6 -10 MT can be supplied with a ID of 480 mm or 520 mm
